Engraving

Engraving is the process of creating indents on surfaces. At Brighten, we are specialists in rotary engraving, which uses a needle spun at high speed to create indents specifically on acrylic, brass and aluminium surfaces.

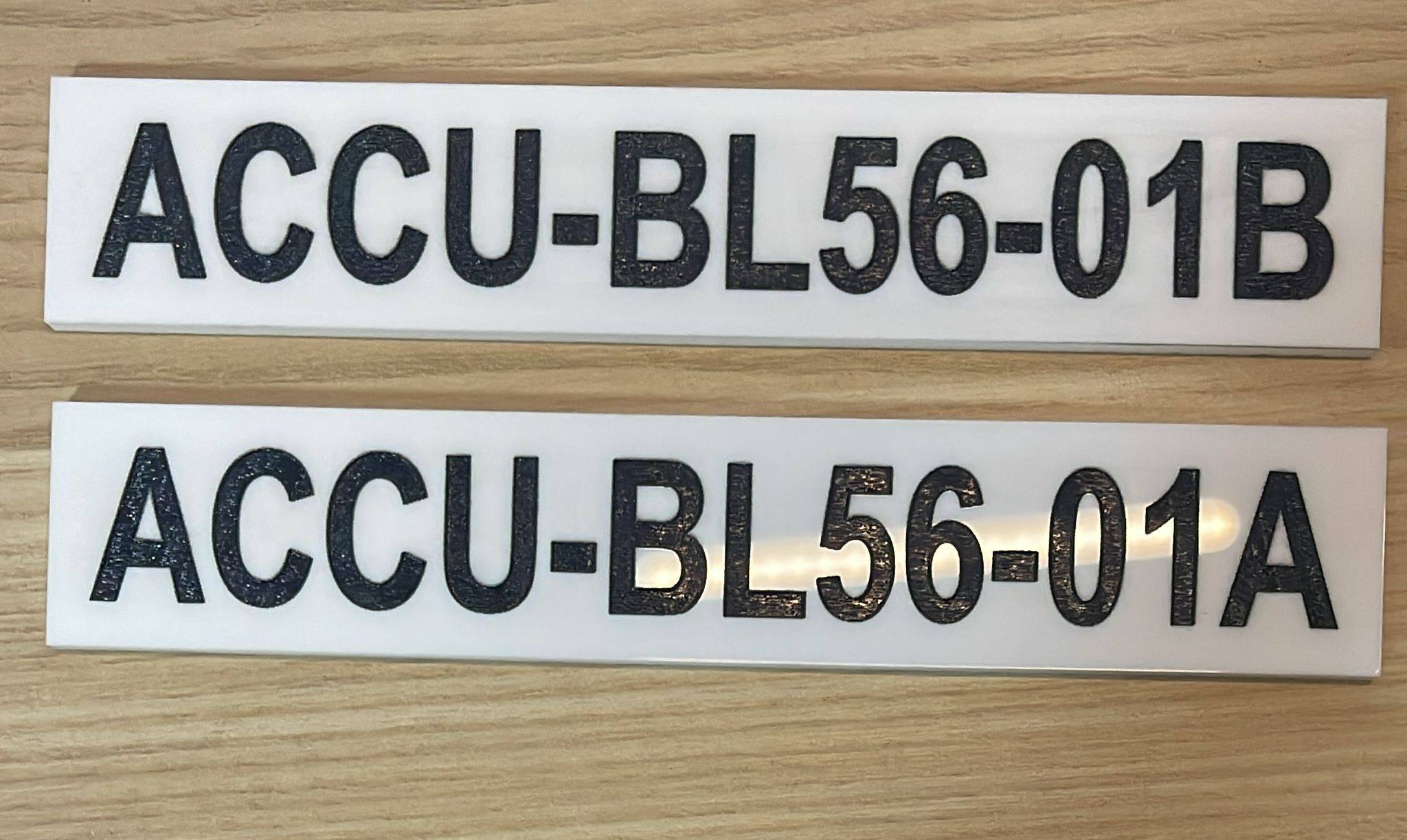

Rotary engraving is commonly used for switchboard labels, machinery tags, door plates and more.

Compared to most laser engraved and printed items, the indents are deeper and more durable.

The process of rotary engraving differs from chemical etching in that it’s carried out on the following surfaces.

GRAVOPLY

The most common material used for acrylic labels.

Consists of 2 layers (2 ply), and is mostly used for indoor, switchboard/panel and all other general labellings.

Wide range of colors and fonts to choose from.

TRAFFOLITE

This material is similar to Gravoply, with 2 exceptions:It is fire-resistant to 180 degrees celcius, and has 3 layers (3 ply) instead of 2.

It also conforms to military specs. ASTM D 709 ES-1, ES-2 and ES-3.

Usually used on machineries or service cabinets emittance of moderate heat.

ALUMINUM

The softest metal we supply, compared to stainless steel and brass.

Our engravable aluminum comes in 2 finishing: Gold and Silver.

Outcome of engraving texts/designs are colorless but noticeable.

BRASS

A mixture of copper and zinc, our brass is a dull gold hairline finishing, also coated with clear lacquer to prevent from oxidizing.Used indoors mostly under air-con environments for high-priced items like artworks, presentations and award plaques.Thickness ranges from 0.5mm to 3mm.

ACRYLIC

1 solid layer of plastic, also known as Perspex.

Thickness ranges from 1mm to as thick as 50mm if needed.

Wide range of colors, including a transparent option.

Versatile usage such as company signages, warning signs and notice boards.

Can be engraved and then filled with color paint.

2 PLY REVERSE ACRYLIC

The most scratch-resistant form of engraved material.

Highly durable 2 ply plastic, with a transparent top ply and a black/white bottom ply

The engraving is done at the back of the material, as opposed to traffolite, gravoply and acrylic, whereby engraving is done on the surface of the material.

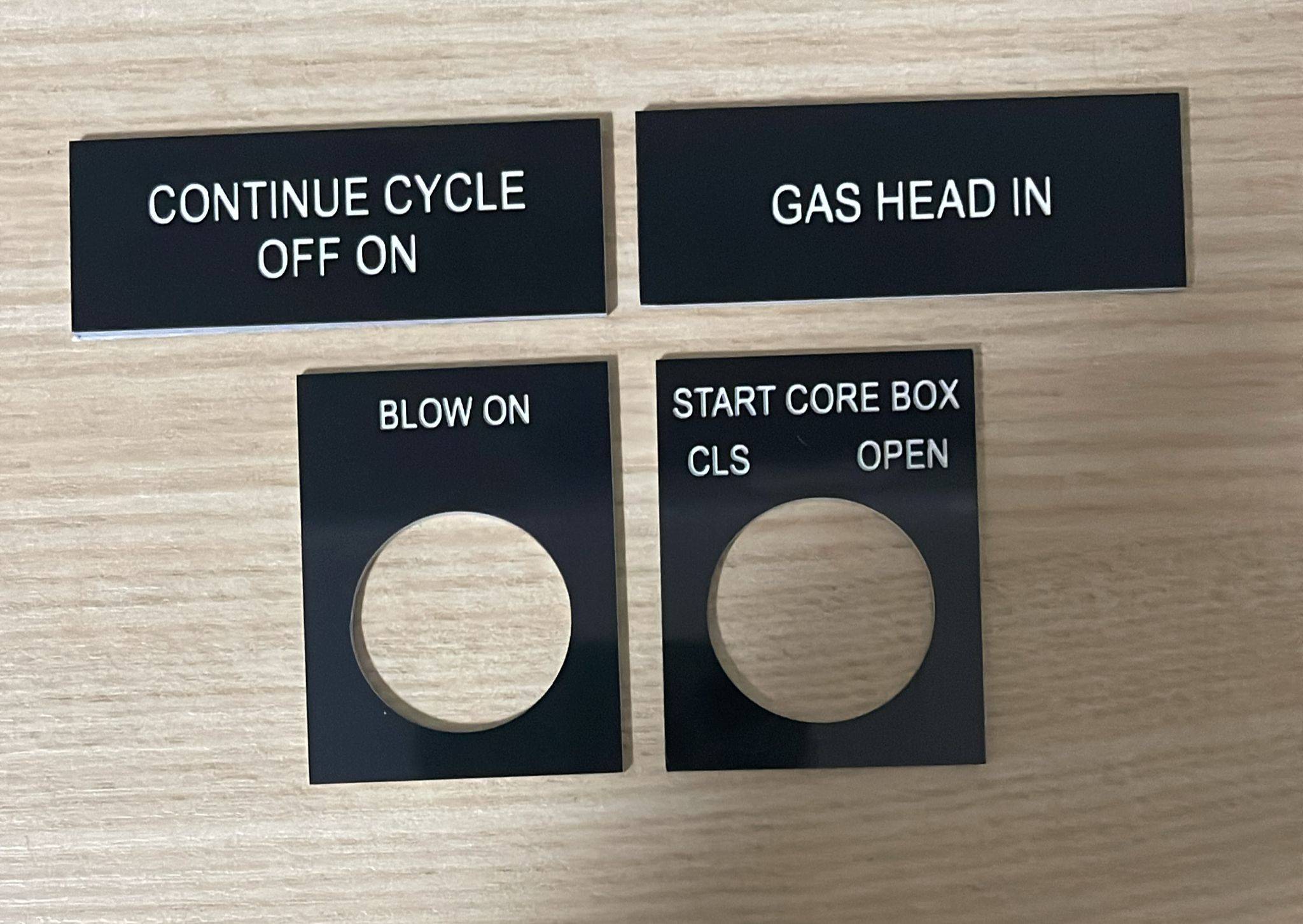

Used mainly for control panels, which are prone to scratches.

This material protects the engraving text/logos because the engraving is done below the top ply.
